DEUTZ EAT TECHNOLOGY

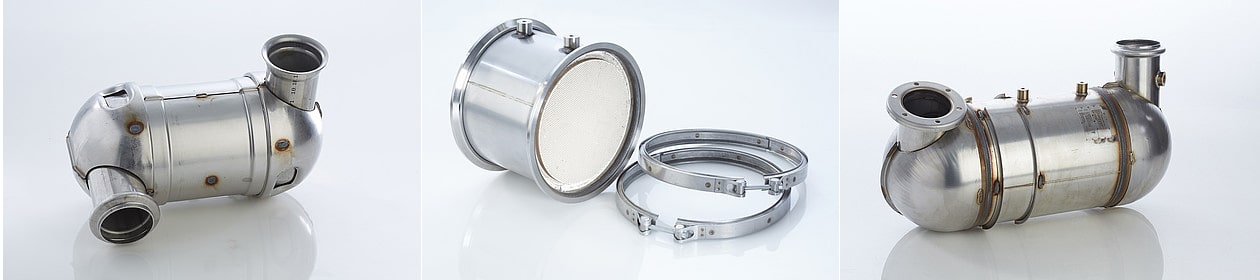

Compact and flexible – the modular EAT system.

Current emission regulations place high demands on diesel engines in terms of technology and installation space. Our compact and modular EAT design allows for a perfect integration into your machines.

Compact modular design allows for minimal space requirements. In combination with the high range of product variants, a multitude of installation situations can be covered.
Reliable and robust technology provides easy maintenance, safety and reliability.
Optimal acoustic design ensures that the installation of a silencer is no longer necessary.

EAT COMPONENTS

DIESEL OXIDATION CATALYTIC CONVERTER (DOC)

Open system for engines of the <4 liter class.

The DOC is the ideal solution for exhaust after-treatment in light, low to medium duty applications. Its catalytically active coating reliably reduces carbon monoxide, hydrocarbon, and nitrogen oxides to the mandatory limit values.

The use of durable, compact, and cost-effective technology provides advantages under all conditions and requires no additional maintenance. Up- and downgrades to adjust your DEUTZ engine´s emission level to different regional requirements are available by contacting the DEUTZ UK service team.

PRODUCT FEATURES

Maintenance free

Robust, compact and cost-effective technology

Wide range of design alternatives for perfect integration into your application

ENQUIRE NOW

DIESEL PARTICULATE FILTER (DPF)

Reduces particulate mass in the exhaust stream up to 99%

Coated with noble metals and tailored to the installation requirements of the individual customer application, DEUTZ Diesel Particulate Filter support smooth, secure and continuous regeneration – without the need for regular maintenance or additional operating liquids.

The use of reliable turbocharger technology – especially compared to EAT systems that rely exclusively on SCR – allows for optimum engine performance within the entire rpm-range. A surface temperature of max. 250 °C provides additional safety during operation.

PRODUCT FEATURES

High ash absorption reduces downtime and cleaning costs
Safe regeneration of soot load during engine operation

Best-in-class engine dynamics and torque curve as well as fuel consumption compared with SCR-only strategy
Already compatible with local and future legislation

Cost effective refurbished Xchange DPF with full warranty available

ENQUIRE NOW

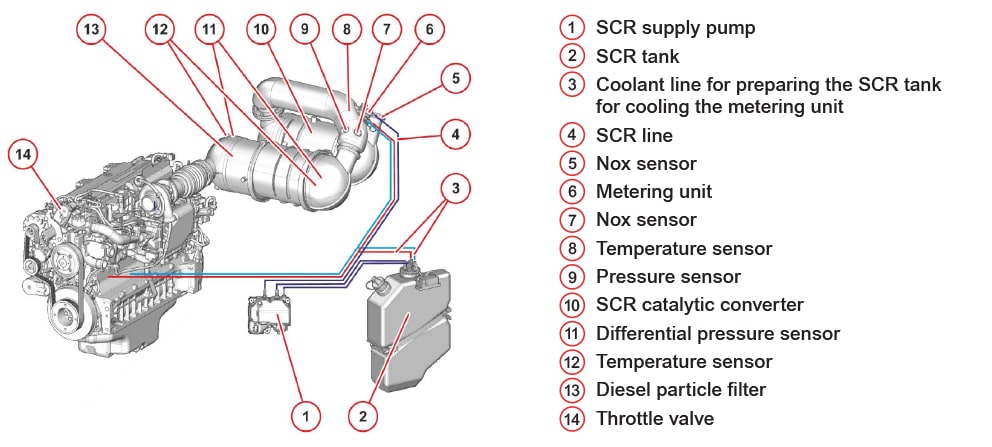

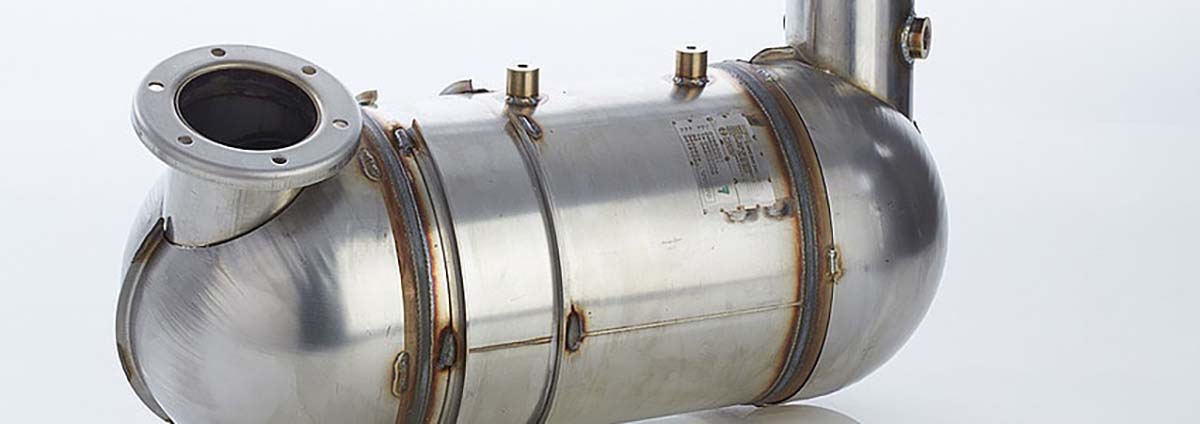

SELECTIVE CATALYTIC REDUCTION SYSTEM (SCR)

Reduces NOx emission up to 95%

Reduces NOx emission up to 95%.

As with all exhaust after-treatment components, DEUTZ offers numerous solutions for an optimal installation of a SCR-system within the machine application. Sensor systems, multiple filtering and AdBlue pumps designed to handle inclined positions up to 35 degrees allow for a high safety level under all conditions. DEUTZ AdBlue tanks offer maximum flexibility in terms of available sizes, mounting, positioning of the tank inlet as well as quality sensors.

BENEFITS

Lowest total consumption of operating liquids compared to the competition

500-1000 hour service interval regenerates sulfur deposits and AdBlue crystallisation

Technical support and diagnosis provided by the DEUTZ AG UK branch

ENQUIRE NOW

Technical Circular

Engines with SCR system Technical Circular

NOx reducing agent for SCR exhaust gas treatment

0199-99-01164/4 EN
This Circular supersedes: TR 0199-99-01164/3
Date 19.02.2019

This bulletin provides technical and safety information for Engines with SCR systems.

Click on the PDF icon to download.

DEUTZ TECHNICAL HELP

No matter where in the UK you are based and which DEUTZ engine you operate, we offer first-class service and support.

If you have any questions about how your DEUTZ engine is running, then just give us a call. Our fully qualified Technical Team will be happy to help you with your enquiry.

To get in touch, please call us on 01543 438900 or email us here.
